Small Arms Review
  • Home
  • Articles
    • Guns & Parts
    • Suppressors
    • Optics & Thermals
    • Ammunition
    • Gear
    • News & Opinion
    • Columns
    • Museums & Factory Tours
    • ID Guides
    • Interviews
    • Event Coverage
    • Articles by Issue
      • Volume 1
        • V1N1 (Oct 1997)
        • V1N2 (Nov 1997)
        • V1N3 (Dec 1997)
        • V1N4 (Jan 1998)
        • V1N5 (Feb 1998)
        • V1N6 (Mar 1998)
        • V1N7 (Apr 1998)
        • V1N8 (May 1998)
        • V1N9 (Jun 1998)
        • V1N10 (Jul 1998)
        • V1N11 (Aug 1998)
        • V1N12 (Sep 1998)
      • Volume 2
        • V2N1 (Oct 1998)
        • V2N2 (Nov 1998)
        • V2N3 (Dec 1998)
        • V2N4 (Jan 1999)
        • V2N5 (Feb 1999)
        • V2N6 (Mar 1999)
        • V2N7 (Apr 1999)
        • V2N8 (May 1999)
        • V2N9 (Jun 1999)
        • V2N10 (Jul 1999)
        • V2N11 (Aug 1999)
        • V2N12 (Sep 1999)
      • Volume 3
        • V3N1 (Oct 1999)
        • V3N2 (Nov 1999)
        • V3N3 (Dec 1999)
        • V3N4 (Jan 2000)
        • V3N5 (Feb 2000)
        • V3N6 (Mar 2000)
        • V3N7 (Apr 2000)
        • V3N8 (May 2000)
        • V3N9 (Jun 2000)
        • V3N10 (Jul 2000)
        • V3N11 (Aug 2000)
        • V3N12 (Sep 2000)
      • Volume 4
        • V4N1 (Oct 2000)
        • V4N2 (Nov 2000)
        • V4N3 (Dec 2000)
        • V4N4 (Jan 2001)
        • V4N5 (Feb 2001)
        • V4N6 (Mar 2001)
        • V4N7 (Apr 2001)
        • V4N8 (May 2001)
        • V4N9 (Jun 2001)
        • V4N10 (Jul 2001)
        • V4N11 (Aug 2001)
        • V4N12 (Sep 2001)
      • Volume 5
        • V5N1 (Oct 2001)
        • V5N2 (Nov 2001)
        • V5N3 (Dec 2001)
        • V5N4 (Jan 2002)
        • V5N5 (Feb 2002)
        • V5N6 (Mar 2002)
        • V5N7 (Apr 2002)
        • V5N8 (May 2002)
        • V5N9 (Jun 2002)
        • V5N10 (Jul 2002)
        • V5N11 (Aug 2002)
        • V5N12 (Sep 2002)
      • Volume 6
        • V6N1 (Oct 2002)
        • V6N2 (Nov 2002)
        • V6N3 (Dec 2002)
        • V6N4 (Jan 2003)
        • V6N5 (Feb 2003)
        • V6N6 (Mar 2003)
        • V6N7 (Apr 2003)
        • V6N8 (May 2003)
        • V6N9 (Jun 2003)
        • V6N10 (Jul 2003)
        • V6N11 (Aug 2003)
        • V6N12 (Sep 2003)
      • Volume 7
        • V7N1 (Oct 2003)
        • V7N2 (Nov 2003)
        • V7N3 (Dec 2003)
        • V7N4 (Jan 2004)
        • V7N5 (Feb 2004)
        • V7N6 (Mar 2004)
        • V7N7 (Apr 2004)
        • V7N8 (May 2004)
        • V7N9 (Jun 2004)
        • V7N10 (Jul 2004)
        • V7N11 (Aug 2004)
        • V7N12 (Sep 2004)
      • Volume 8
        • V8N1 (Oct 2004)
        • V8N2 (Nov 2004)
        • V8N3 (Dec 2004)
        • V8N4 (Jan 2005)
        • V8N5 (Feb 2005)
        • V8N6 (Mar 2005)
        • V8N7 (Apr 2005)
        • V8N8 (May 2005)
        • V8N9 (Jun 2005)
        • V8N10 (Jul 2005)
        • V8N11 (Aug 2005)
        • V8N12 (Sep 2005)
      • Volume 9
        • V9N1 (Oct 2005)
        • V9N2 (Nov 2005)
        • V9N3 (Dec 2005)
        • V9N4 (Jan 2006)
        • V9N5 (Feb 2006)
        • V9N6 (Mar 2006)
        • V9N7 (Apr 2006)
        • V9N8 (May 2006)
        • V9N9 (Jun 2006)
        • V9N10 (Jul 2006)
        • V9N11 (Aug 2006)
        • V9N12 (Sep 2006)
      • Volume 10
        • V10N1 (Oct 2006)
        • V10N2 (Nov 2006)
        • V10N3 (Dec 2006)
        • V10N4 (Jan 2007)
        • V10N5 (Feb 2007)
        • V10N6 (Mar 2007)
        • V10N7 (Apr 2007)
        • V10N8 (May 2007)
        • V10N9 (Jun 2007)
        • V10N10 (Jul 2007)
        • V10N11 (Aug 2007)
        • V10N12 (Sep 2007)
      • Volume 11
        • V11N1 (Oct 2007)
        • V11N2 (Nov 2007)
        • V11N3 (Dec 2007)
        • V11N4 (Jan 2008)
        • V11N5 (Feb 2008)
        • V11N6 (Mar 2008)
        • V11N7 (Apr 2008)
        • V11N8 (May 2008)
        • V11N9 (Jun 2008)
        • V11N10 (Jul 2008)
        • V11N11 (Aug 2008)
        • V11N12 (Sep 2008)
      • Volume 12
        • V12N1 (Oct 2008)
        • V12N2 (Nov 2008)
        • V12N3 (Dec 2008)
        • V12N4 (Jan 2009)
        • V12N5 (Feb 2009)
        • V12N6 (Mar 2009)
        • V12N7 (Apr 2009)
        • V12N8 (May 2009)
        • V12N9 (Jun 2009)
        • V12N10 (Jul 2009)
        • V12N11 (Aug 2009)
        • V12N12 (Sep 2009)
      • Volume 13
        • V13N1 (Oct 2009)
        • V13N2 (Nov 2009)
        • V13N3 (Dec 2009)
        • V13N4 (Jan 2010)
        • V13N5 (Feb 2010)
        • V13N6 (Mar 2010)
        • V13N7 (Apr 2010)
        • V13N8 (May 2010)
        • V13N9 (Jun 2010)
        • V13N10 (Jul 2010)
        • V13N11 (Aug 2010)
        • V13N12 (Sep 2010)
      • Volume 14
        • V14N1 (Oct 2010)
        • V14N2 (Nov 2010)
        • V14N3 (Dec 2010)
          • Ammunition
        • V14N4 (Jan 2011)
        • V14N5 (Feb 2011)
        • V14N6 (Mar 2011)
        • V14N7 (Apr 2011)
        • V14N8 (May 2011)
        • V14N9 (Jun 2011)
        • V14N10 (Jul 2011)
        • V14N11 (Aug 2011)
        • V14N12 (Sep 2011)
      • Volume 15
        • V15N1 (Oct 2011)
        • V15N2 (Nov 2011)
        • V15N4 (Jan 2012)
        • V15N5 (Feb 2012)
      • Volume 16
        • V16N1 (1st Quarter 2012)
        • V16N2 (2nd Quarter 2012)
        • V16N3 (3rd Quarter 2012)
        • V16N4 (4th Quarter 2012)
      • Volume 17
        • V17N1 (1st Quarter 2013)
        • V17N2 (2nd Quarter 2013)
        • V17N3 (3rd Quarter 2013)
        • V17N4 (4th Quarter 2013)
      • Volume 18
        • V18N1 (Jan Feb 2014)
        • V18N2 (Mar Apr 2014)
        • V18N3 (May Jun 2014)
        • V18N4 (Jul Aug 2014)
        • V18N5 (Sep Oct 2014)
        • V18N6 (Nov Dec 2014)
      • Volume 19
        • V19N1 (Jan 2015)
        • V19N2 (Feb Mar 2015)
        • V19N3 (Apr 2015)
        • V19N4 (May 2015)
        • V19N5 (Jun 2015)
        • V19N6 (Jul 2015)
        • V19N7 (Aug Sep 2015)
        • V19N8 (Oct 2015)
        • V19N9 (Nov 2015)
        • V19N10 (Dec 2015)
      • Volume 20
        • V20N1 (Jan 2016)
        • V20N2 (Feb Mar 2016)
        • V20N3 (Apr 2016)
        • V20N4 (May 2016)
        • V20N5 (Jun 2016)
        • V20N6 (Jul 2016)
        • V20N7 (Aug Sep 2016)
        • V20N8 (Oct 2016)
        • V20N9 (Nov 2016)
        • V20N10 (Dec 2016)
      • Volume 21
        • V21N1 (Jan 2017)
        • V21N2 (Feb Mar 2017)
        • V21N3 (Apr 2017)
        • V21N4 (May 2017)
        • V21N5 (Jun 2017)
        • V21N6 (Jul 2017)
        • V21N7 (Aug Sep 2017)
        • V21N8 (Oct 2017)
        • V21N9 (Nov 2017)
        • V21N10 (Dec 2017)
      • Volume 22
        • V22N1 (Jan 2018)
        • V22N2 (Feb 2018)
        • V22N3 (March 2018)
        • V22N4 (Apr 2018)
        • V22N5 (May 2018)
        • V22N6 (Jun Jul 2018)
        • V22N7 (Aug Sep 2018)
        • V22N8 (Oct 2018)
        • V22N9 (Nov 2018)
        • V22N10 (Dec 2018)
      • Volume 23
        • V23N1 (Jan 2019)
        • V23N2 (Feb 2019)
        • V23N3 (Mar 2019)
        • V23N4 (Apr 2019)
        • V23N5 (May 2019)
        • V23N6 (Jun Jul 2019)
        • V23N7 (Aug Sep 2019)
        • V23N8 (Oct 2019)
        • V23N9 (Nov 2019)
        • V23N10 (Dec 2019)
      • Volume 24
        • V24N1 (Jan 2020)
        • V24N2 (Feb 2020)
        • V24N3 (Mar 2020)
        • V24N4 (Apr 2020)
        • V24N5 (May 2020)
        • V24N6 (Jun Jul 2020)
        • V24N7 (Aug Sep 2020)
        • V24N8 (Oct 2020)
        • V24N9 (Nov 2020)
        • V24N10 (Dec 2020)
  • The Archive
    • Search The Archive
  • Store
    • Books
    • Back Issues
    • Merchandise
  • Events
  • About
    • About Small Arms Review
    • About Chipotle Publishing
    • Contact Us
    • Other Publications
      • Small Arms Defense Journal
  • Home
  • Articles
    • Guns & Parts
    • Suppressors
    • Optics & Thermals
    • Ammunition
    • Gear
    • News & Opinion
    • Columns
    • Museums & Factory Tours
    • ID Guides
    • Interviews
    • Event Coverage
    • Articles by Issue
      • Volume 1
        • V1N1 (Oct 1997)
        • V1N2 (Nov 1997)
        • V1N3 (Dec 1997)
        • V1N4 (Jan 1998)
        • V1N5 (Feb 1998)
        • V1N6 (Mar 1998)
        • V1N7 (Apr 1998)
        • V1N8 (May 1998)
        • V1N9 (Jun 1998)
        • V1N10 (Jul 1998)
        • V1N11 (Aug 1998)
        • V1N12 (Sep 1998)
      • Volume 2
        • V2N1 (Oct 1998)
        • V2N2 (Nov 1998)
        • V2N3 (Dec 1998)
        • V2N4 (Jan 1999)
        • V2N5 (Feb 1999)
        • V2N6 (Mar 1999)
        • V2N7 (Apr 1999)
        • V2N8 (May 1999)
        • V2N9 (Jun 1999)
        • V2N10 (Jul 1999)
        • V2N11 (Aug 1999)
        • V2N12 (Sep 1999)
      • Volume 3
        • V3N1 (Oct 1999)
        • V3N2 (Nov 1999)
        • V3N3 (Dec 1999)
        • V3N4 (Jan 2000)
        • V3N5 (Feb 2000)
        • V3N6 (Mar 2000)
        • V3N7 (Apr 2000)
        • V3N8 (May 2000)
        • V3N9 (Jun 2000)
        • V3N10 (Jul 2000)
        • V3N11 (Aug 2000)
        • V3N12 (Sep 2000)
      • Volume 4
        • V4N1 (Oct 2000)
        • V4N2 (Nov 2000)
        • V4N3 (Dec 2000)
        • V4N4 (Jan 2001)
        • V4N5 (Feb 2001)
        • V4N6 (Mar 2001)
        • V4N7 (Apr 2001)
        • V4N8 (May 2001)
        • V4N9 (Jun 2001)
        • V4N10 (Jul 2001)
        • V4N11 (Aug 2001)
        • V4N12 (Sep 2001)
      • Volume 5
        • V5N1 (Oct 2001)
        • V5N2 (Nov 2001)
        • V5N3 (Dec 2001)
        • V5N4 (Jan 2002)
        • V5N5 (Feb 2002)
        • V5N6 (Mar 2002)
        • V5N7 (Apr 2002)
        • V5N8 (May 2002)
        • V5N9 (Jun 2002)
        • V5N10 (Jul 2002)
        • V5N11 (Aug 2002)
        • V5N12 (Sep 2002)
      • Volume 6
        • V6N1 (Oct 2002)
        • V6N2 (Nov 2002)
        • V6N3 (Dec 2002)
        • V6N4 (Jan 2003)
        • V6N5 (Feb 2003)
        • V6N6 (Mar 2003)
        • V6N7 (Apr 2003)
        • V6N8 (May 2003)
        • V6N9 (Jun 2003)
        • V6N10 (Jul 2003)
        • V6N11 (Aug 2003)
        • V6N12 (Sep 2003)
      • Volume 7
        • V7N1 (Oct 2003)
        • V7N2 (Nov 2003)
        • V7N3 (Dec 2003)
        • V7N4 (Jan 2004)
        • V7N5 (Feb 2004)
        • V7N6 (Mar 2004)
        • V7N7 (Apr 2004)
        • V7N8 (May 2004)
        • V7N9 (Jun 2004)
        • V7N10 (Jul 2004)
        • V7N11 (Aug 2004)
        • V7N12 (Sep 2004)
      • Volume 8
        • V8N1 (Oct 2004)
        • V8N2 (Nov 2004)
        • V8N3 (Dec 2004)
        • V8N4 (Jan 2005)
        • V8N5 (Feb 2005)
        • V8N6 (Mar 2005)
        • V8N7 (Apr 2005)
        • V8N8 (May 2005)
        • V8N9 (Jun 2005)
        • V8N10 (Jul 2005)
        • V8N11 (Aug 2005)
        • V8N12 (Sep 2005)
      • Volume 9
        • V9N1 (Oct 2005)
        • V9N2 (Nov 2005)
        • V9N3 (Dec 2005)
        • V9N4 (Jan 2006)
        • V9N5 (Feb 2006)
        • V9N6 (Mar 2006)
        • V9N7 (Apr 2006)
        • V9N8 (May 2006)
        • V9N9 (Jun 2006)
        • V9N10 (Jul 2006)
        • V9N11 (Aug 2006)
        • V9N12 (Sep 2006)
      • Volume 10
        • V10N1 (Oct 2006)
        • V10N2 (Nov 2006)
        • V10N3 (Dec 2006)
        • V10N4 (Jan 2007)
        • V10N5 (Feb 2007)
        • V10N6 (Mar 2007)
        • V10N7 (Apr 2007)
        • V10N8 (May 2007)
        • V10N9 (Jun 2007)
        • V10N10 (Jul 2007)
        • V10N11 (Aug 2007)
        • V10N12 (Sep 2007)
      • Volume 11
        • V11N1 (Oct 2007)
        • V11N2 (Nov 2007)
        • V11N3 (Dec 2007)
        • V11N4 (Jan 2008)
        • V11N5 (Feb 2008)
        • V11N6 (Mar 2008)
        • V11N7 (Apr 2008)
        • V11N8 (May 2008)
        • V11N9 (Jun 2008)
        • V11N10 (Jul 2008)
        • V11N11 (Aug 2008)
        • V11N12 (Sep 2008)
      • Volume 12
        • V12N1 (Oct 2008)
        • V12N2 (Nov 2008)
        • V12N3 (Dec 2008)
        • V12N4 (Jan 2009)
        • V12N5 (Feb 2009)
        • V12N6 (Mar 2009)
        • V12N7 (Apr 2009)
        • V12N8 (May 2009)
        • V12N9 (Jun 2009)
        • V12N10 (Jul 2009)
        • V12N11 (Aug 2009)
        • V12N12 (Sep 2009)
      • Volume 13
        • V13N1 (Oct 2009)
        • V13N2 (Nov 2009)
        • V13N3 (Dec 2009)
        • V13N4 (Jan 2010)
        • V13N5 (Feb 2010)
        • V13N6 (Mar 2010)
        • V13N7 (Apr 2010)
        • V13N8 (May 2010)
        • V13N9 (Jun 2010)
        • V13N10 (Jul 2010)
        • V13N11 (Aug 2010)
        • V13N12 (Sep 2010)
      • Volume 14
        • V14N1 (Oct 2010)
        • V14N2 (Nov 2010)
        • V14N3 (Dec 2010)
          • Ammunition
        • V14N4 (Jan 2011)
        • V14N5 (Feb 2011)
        • V14N6 (Mar 2011)
        • V14N7 (Apr 2011)
        • V14N8 (May 2011)
        • V14N9 (Jun 2011)
        • V14N10 (Jul 2011)
        • V14N11 (Aug 2011)
        • V14N12 (Sep 2011)
      • Volume 15
        • V15N1 (Oct 2011)
        • V15N2 (Nov 2011)
        • V15N4 (Jan 2012)
        • V15N5 (Feb 2012)
      • Volume 16
        • V16N1 (1st Quarter 2012)
        • V16N2 (2nd Quarter 2012)
        • V16N3 (3rd Quarter 2012)
        • V16N4 (4th Quarter 2012)
      • Volume 17
        • V17N1 (1st Quarter 2013)
        • V17N2 (2nd Quarter 2013)
        • V17N3 (3rd Quarter 2013)
        • V17N4 (4th Quarter 2013)
      • Volume 18
        • V18N1 (Jan Feb 2014)
        • V18N2 (Mar Apr 2014)
        • V18N3 (May Jun 2014)
        • V18N4 (Jul Aug 2014)
        • V18N5 (Sep Oct 2014)
        • V18N6 (Nov Dec 2014)
      • Volume 19
        • V19N1 (Jan 2015)
        • V19N2 (Feb Mar 2015)
        • V19N3 (Apr 2015)
        • V19N4 (May 2015)
        • V19N5 (Jun 2015)
        • V19N6 (Jul 2015)
        • V19N7 (Aug Sep 2015)
        • V19N8 (Oct 2015)
        • V19N9 (Nov 2015)
        • V19N10 (Dec 2015)
      • Volume 20
        • V20N1 (Jan 2016)
        • V20N2 (Feb Mar 2016)
        • V20N3 (Apr 2016)
        • V20N4 (May 2016)
        • V20N5 (Jun 2016)
        • V20N6 (Jul 2016)
        • V20N7 (Aug Sep 2016)
        • V20N8 (Oct 2016)
        • V20N9 (Nov 2016)
        • V20N10 (Dec 2016)
      • Volume 21
        • V21N1 (Jan 2017)
        • V21N2 (Feb Mar 2017)
        • V21N3 (Apr 2017)
        • V21N4 (May 2017)
        • V21N5 (Jun 2017)
        • V21N6 (Jul 2017)
        • V21N7 (Aug Sep 2017)
        • V21N8 (Oct 2017)
        • V21N9 (Nov 2017)
        • V21N10 (Dec 2017)
      • Volume 22
        • V22N1 (Jan 2018)
        • V22N2 (Feb 2018)
        • V22N3 (March 2018)
        • V22N4 (Apr 2018)
        • V22N5 (May 2018)
        • V22N6 (Jun Jul 2018)
        • V22N7 (Aug Sep 2018)
        • V22N8 (Oct 2018)
        • V22N9 (Nov 2018)
        • V22N10 (Dec 2018)
      • Volume 23
        • V23N1 (Jan 2019)
        • V23N2 (Feb 2019)
        • V23N3 (Mar 2019)
        • V23N4 (Apr 2019)
        • V23N5 (May 2019)
        • V23N6 (Jun Jul 2019)
        • V23N7 (Aug Sep 2019)
        • V23N8 (Oct 2019)
        • V23N9 (Nov 2019)
        • V23N10 (Dec 2019)
      • Volume 24
        • V24N1 (Jan 2020)
        • V24N2 (Feb 2020)
        • V24N3 (Mar 2020)
        • V24N4 (Apr 2020)
        • V24N5 (May 2020)
        • V24N6 (Jun Jul 2020)
        • V24N7 (Aug Sep 2020)
        • V24N8 (Oct 2020)
        • V24N9 (Nov 2020)
        • V24N10 (Dec 2020)
  • The Archive
    • Search The Archive
  • Store
    • Books
    • Back Issues
    • Merchandise
  • Events
  • About
    • About Small Arms Review
    • About Chipotle Publishing
    • Contact Us
    • Other Publications
      • Small Arms Defense Journal
No Result
View All Result
Small Arms Review
No Result
View All Result
Home Guns & Parts

Emergence of the Carbine: The British Enfield SA80 Carbines

by Jonathan Ferguson
February 14, 2024
in Guns & Parts, Articles, Articles by Issue, V23N8 (Oct 2019), Volume 23
Emergence of the Carbine: The British Enfield SA80 Carbines
Share on FacebookShare on Twitter

By Jonathan Ferguson, Armament Research Services

From the inception of the (Section) Small Arms of the 1980s project in 1970, the intent behind British adoption of a bullpup rifle had been to replace as many section (squad) firearms as possible. This included the 7.62x51mm L1A1 self-loading rifle (SLR) and L4A4 (Bren) light machine gun (LMG), as well as the L2A3 Patchett-Sterling submachine gun (SMG) in 9x19mm. By 1970, all of these weapons were considered “legacy” designs, outdated in concept and each designed and manufactured 20 or more years previously. Although the SMG was not excessively powerful, heavy and expensive to build and maintain like the SLR and LMG, the advent of compact and lightweight small calibre, high velocity (SCHV) designs was casting doubt on its relevance. Even a conventionally laid-out 5.56x45mm automatic rifle could allow an armed force to retire its SMGs, with their limited range and terminal effect. A design in bullpup configuration was even more appealing to some, and the SA80 rifle was developed from the beginning as an “SMG killer.” Nonetheless, Enfield did investigate an ultra-compact carbine or submachine gun variant at least as early as 1984.

UK MINISTRY OF DEFENCE
A Royal Marines Commando with an L22A2 self-loading rifle.

1984 Prototype

In 1984, the L85A1 rifle and L86A1 machine gun gained official approval, and our earliest evidence for an SA80 carbine emerges. This takes the form of an archival photograph dated November 1984 of an early attempt shown alongside a full-size IW and the Sterling SMG (see Steve Raw’s The Last Enfield, p. 216). This is a converted XL64E5 EWS “IW” (Individual Weapon—NATO nomenclature for a rifle or similar arm) in an ultra-short format. The weapon itself is still extant in the former MoD Pattern Room collection, allowing this author to examine it closely. The barrel is 242mm (9.5 inches) in length; the shortest barrel ever fitted to an SA80 variant. The barrel and gas block are adapted from surplus XL70E3 components, and so the weapon is chambered for 5.56x45mm. The portion of the barrel forward of the gas block had been turned down to a smaller diameter and left “in the white.” The gas block was reshaped to accept the new plug, and the upper surfaced bevelled for a low profile.

The 1984 prototype lacks a muzzle device or any threading; although there is a groove cut at the six o’clock position near the crown that hints at a possible pinned-on muzzle device of some kind. The Body (upper receiver) is crudely cut away on top to expose the gas system, and to offer rudimentary reinforcement, short “flaps” of sheet steel have been folded down against the outside of the Body. In this configuration, the only way to fire the weapon with both hands would be to wrap the support hand around the firing hand as in a modern two-handed pistol shooting hold. The bolt carrier group is the original XL64E5 assembly with its tungsten recoil pellet and dorsal cut-out for use with the XL65E4 light support weapon’s (LSW) open-bolt automatic mode of fire (at this stage of development, the carrier groups were interchangeable). The bolt itself is also the original pattern, with deeply relieved “neck” to accommodate the huge extractor. Overall, this early effort was not well designed, and the operating rod appears to have bent during testing.

It is curious that Enfield should base this weapon upon the XL60 series, as by 1984, the current variant was the substantially redesigned (X)L80 version. Yet the evidence speaks for itself; not only is there no earlier evidence of work on a carbine, the gas block on this first prototype is that of an (X)L80 series weapon. The recycling of an older prototype suggests that this was not an attempt to “sell” the concept of a carbine to the UK military (in which case a more “current” variant would have been used). It was likely just an in-house project, perhaps anticipating a military requirement that had yet to be articulated. Whenever it was first explored, the deliberate shortening of an SA80 down to exactly the length of a Sterling with folded stock is telling. It suggests that the justification for such a weapon was that an SMG in the personal defence weapon role might be used with its stock folded. Not only might there not be time to deploy the stock (especially the ingenious but over-engineered Sterling stock) in an emergency, but users might actually still be in the confines of a vehicle or aircraft when they needed their weapon. The Sterling with its stock closed was substantially shorter than the L85A1, and the latter was much bulkier and heavier to boot. No feedback on this attempt survives today, and it would be another few years before the idea was tried again.

1989 Prototype

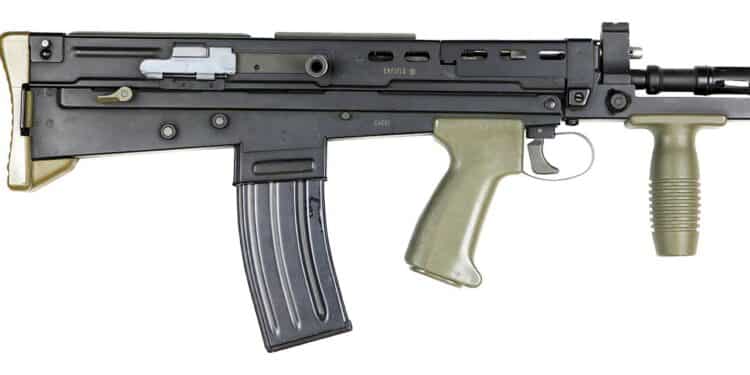

In 1989 a short run of unnamed carbines was built from L85A1 parts (as evidenced by the lack of the four attachment holes for the outrigger; at this time only LSW Bodies were so modified). These weapons were, superficially at least, remarkably similar to the current in-service design. They featured a barrel of similar length to the 1984 iteration; this time measuring 310mm (12.2 inches) including a flash suppressor. The new design was mechanically different, however. As might be expected, the gas system was shortened quite dramatically. This would have affected the functioning of the weapon. Gas pressure would have been increased, but the operating duration would be reduced, most likely resulting in “short-stroking.” Presumably to address this, the bolt carrier was lightened with a deep v-shaped groove on top. This appears to have induced further problems (perhaps excessive carrier velocity and therefore undesirable wear to the weapon). To address this, in turn, the return spring was augmented with a second internal (“nested”) spring. The Heckler & Koch (HK) solution to the problem of a “shorty” SA80 was far more elegant (see below). It should be noted that Raw (p. 221) incorrectly describes these mechanical changes as having been applied to the 1994 prototype (see below). Raw also speculates that these changes were made to increase the rate of fire, but this seems an unlikely and undesirable purpose in light of the pressure change/carrier velocity explanation.

BRITISH ARMY
Note L22A2 rifle, at left, fitted with shorter folding foregrip as issued with L129A1 Sharpshooter rifles.

The installation of a standard L85A1 flash suppressor, and a sheet-metal “outrigger” below it to protect the firing hand, permitted a proper two-handed hold on the 1989 gun. To facilitate this, an LSW rear grip was permanently fitted as a vertical foregrip. These guns were serial numbered in the range “CA 00X,” and the Body was marked with the commercial “ENFIELD” trademark. No service designation is applied; these were never introduced into British (or any other) military service. However, they are not quite prototypes either, as they were advertised for sale by Royal Ordnance. A handful still exist, divided between the Royal Armouries and Shrivenham (Defence Academy of the UK) weapons’ collections. Raw (p. 219) suggests that a small quantity were sold to an unspecified Middle Eastern country but were destroyed in a warehouse fire and were therefore never issued. Clearly this product failed commercially, and it does not appear to have been seriously trialled by the British MoD.

1994 Prototype

After Enfield had closed and SA80 production had moved to Nottingham, Royal Ordnance plc experimented with yet another carbine-length SA80. This was again based on the L85A1 but featured a longer barrel and a complete LSW handguard, with just the birdcage portion of the long L85 flash suppressor protruding from the flat front of the handguard. To accommodate this arrangement, the gas block (with its integral front sight base) had to be machined off. With a perceived requirement for iron sights, a second gas block was installed further down the barrel with its gas plug hole left unfilled, and, as before, a carrying handle with its integral rear sight was installed. As per the 1989 prototype, no major changes were made to the mechanical components of the gun, other than a shortened operating rod, about 1 inch shorter than the full-length L85 equivalent. The intent here seems to have been to move the gas port only as far as necessary for proper function. The weapon’s longer 390mm (15.4 inches) barrel may also have been an attempt to maintain reliability while sacrificing a greater reduction in overall length. This variant also failed to enter military service or garner any export sales.

L22A2 self-loading rifle with service markings.

L22A2

In 2003, with the SA80 now the weapon system that it should have been in 1985, attention turned once again to the development of a carbine model. This time, the requirement seems to have originated from the military. As with the A2 rifle and LSW, the new L22A2 carbine received the benefit of HK’s long experience in firearms design and manufacture. The prototype seen here is a converted L85A2 and is marked as such. The bolt carrier group has not been changed, and, in fact, minimal engineering changes were made to the weapon. HK focused on the gas plug, both reducing its internal diameter to compensate for the increased gas pressure of the shorter gas system and lengthening it to increase duration (approximately 2.5mm extra travel). This at last successfully balanced the weapon’s time/pressure curve. The plug was also altered externally, with twin lugs to permit more convenient removal from the front of the gas block. The “excessive” and “off” positions were deleted, and the operating rod was of course shortened.

The new front end is finished with a specifically designed, vented, aluminium heat-shield/ rail accessory system, with Picatinny rails at the 6 o’clock and 3 o’clock positions. The latter is often used to mount the Laser/Light Module (LLM) or a stand-alone mounted flashlight. In either case, an activation switch is sleeved onto the foregrip. No rail is provided on the left side, allowing space for an angled sling loop (the standard buttplate/rear loop remains in place, and the single-point sling appears to be favoured in service). A flat cover is hinged and clipped in place over the gas cylinder/operating rod. An HK vertical foregrip (a “downgrip” in British military parlance) is furnished as standard. This can be removed or relocated on its length of rail by unscrewing the adjustment cap at its base.

Alternatively, for an even more compact package, the folding foregrip issued for use on the L129A1 Sharpshooter rifle may be fitted (and is apparently standard equipment on those L22A2 rifles issued to British Army Apache helicopter crews; see the image). This grip is adjustable into one of five angled positions. In either case, a substantial forward extension to the weapon’s rail system prevents installation too far forwards and significantly reduces the chance of injury to the support hand; although this will always remain a training issue for such a short barrelled weapon. Due to the very short sight radius, previous attempts to provide a backup iron sight system on the weapon itself were abandoned. Instead, the SUSAT or LDS optics both possess Emergency Backup Sights. A 20-round magazine is available to maintain the weapon’s compact silhouette as befits an AFV crew PDW, but of course the standard 30-round magazine of the rifle/LSW is interchangeable. Although the L22A2 is frequently supposed to be a conversion of the L86A1/A2 LSW, in fact, there is no evidence of this, and detailed inspection suggests that they are assembled from surplus L85A1 parts plus newly manufactured HK components.

The L22 is issued as a standard personal weapon for AFV crews of the Royal Armoured Corps and is also to be found stowed in the cockpit of Army Air Corps WAH-64 (Apache AH Mk.1) attack helicopters as not just an aircrew survival weapon but a compact personal weapon, befitting of a corps of soldier aviators. For this application, a special holster is attached to the right side of each crewmember’s seat. It is also provided for use by Royal Navy and Royal Marines’ boarding parties. As to the effectiveness of the design, it is the nature of an emergency use weapon that it is less likely to see use in combat, since, if it does, something has gone badly wrong. As a result, we have no real feedback on the effectiveness of the weapon, but there appear to have been no complaints either. There is of course a loss in muzzle velocity, from the 930 m/s of the rifle down to 780. The state effective range for accurate rapid fire is 200m—100m less than the 300m of the rifle—but is of course dependent upon training, skill and circumstances. In doctrinal terms, it is regarded and treated as a rifle.

L22A2 Carbine

  • Calibre 5.56x45mm
  • Overall length 571mm
  • Barrel length 327mm (11.2in) (285mm ex. flash suppressor)
  • Weight (unloaded with SUSAT)  3.52kg (7.76lb)
  • Feed device 20- or 30-round detach-able magazine

A Note on Nomenclature

It is important to note that there remains a good deal of confusion over the official designation of the L22 Carbine. Some official documentation has given the name as “Carbine, 5.56mm, L22A2,” yet as of 2014 some contemporary official literature uses “L22A1.” Yet all of the actual weapons are marked “L22 A2 5.56×45.” Regardless of this discrepancy, the Enfield- and Nottingham-built prototypes were never designated, as they are sometimes assumed to have been, “L22A1.” The L22 is also occasionally (but nonetheless officially) referred to as “SA80K” and was at one time nicknamed “Stubby K.”

• • •

Special thanks to the National Firearms Centre at the Royal Armouries, who graciously allowed us access to their world-class collection. Thanks are also due to Mike Sterry for his assistance with some of the finer technical details.

This is Part 6 in a series of articles examining the developmental history of the United Kingdom’s SA80 family of firearms. Part 5 appeared in Small Arms Review, Vol. 23, No. 7. See armamentresearch.com for further original content.

(This article is adapted from a chapter in Mr. Ferguson’s forthcoming book on British bullpup rifles, which will be published by Headstamp Publishing in 2019. HeadstampPublishing.com)

This article first appeared in Small Arms Review V23N8 (Oct 2019)

Author

  • Jonathan Ferguson
    Jonathan Ferguson

    View all posts
Tags: 2019Armament Research ServicesEmergence of the Carbine: British Enfield SA80 CARBINESOCTOBER 2019onathan FergusonPart 6V23N8
Previous Post

Heirloom Quality Backup: The American Derringer Corporation Model 1 in 45 Colt

Next Post

S&W M&P 22 Magnum: Fistful of Unlimited Potential

Next Post
S&W M&P 22 Magnum: Fistful of Unlimited Potential

S&W M&P 22 Magnum: Fistful of Unlimited Potential

TRENDING STORIES

  • VALKYRIE ARMAMENT BELT-FED CONVERSION

    VALKYRIE ARMAMENT BELT-FED CONVERSION

    0 shares
    Share 0 Tweet 0
  • EAST GERMAN WIEGER STG RIFLE

    0 shares
    Share 0 Tweet 0
  • The Complete Guide To Colt M-16 Models: Part I

    0 shares
    Share 0 Tweet 0
  • Forgotten M16A1 Rifle Manufacturers: GM/Hydra-Matic and Harrington & Richardson – Part I

    0 shares
    Share 0 Tweet 0
  • The Second Generation AR57: Drop-in 5.7 Upper For Your AR

    0 shares
    Share 0 Tweet 0

RECENT POSTS

SIG Sauer’s Full-Size Compact P365 “Fuse”

SIG Sauer’s Full-Size Compact P365 “Fuse”

June 27, 2024
The Importance of Offhand Shooting

The Importance of Offhand Shooting

June 25, 2024
BOOK REVIEW – The Collector’s Guide to the SKS
